 Posted: Mon May 09, 2005 4:50 pm Post subject: How to start up a Mac Portable? |
 |
|
I've got a Mac Portable, the vendor said it is working. But where do I switch it on? I can't find a switch.
If I open the computer, I find at the backside a connector like for a 9 V batterie. It is for a Pram-batterie? It is really for a common 9 V batterie? |
|
| Back to top |
|
 |
MacOS
Site Admin
Joined: 19 Jan 2005
Posts: 304
Location: Berlin, Germany
|
| Posted: Tue May 10, 2005 11:23 am Post subject: Startup a Portable |
|
|
If you wonder what Mac we are talking about here, its the first "portable" Macintosh, along with the "portable" SE seria.
I found the Service Manual for the Portable:
http://developer.apple.com/.../Portable_BackLit.pdf
http://developer.apple.com/.../Portable.pdf

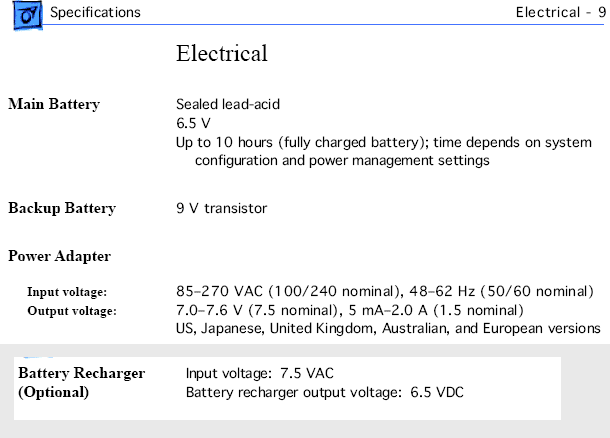

Sadly the start procedure is not described (but some battery facts).
I look at home for the Manual for the Portable and get back later.

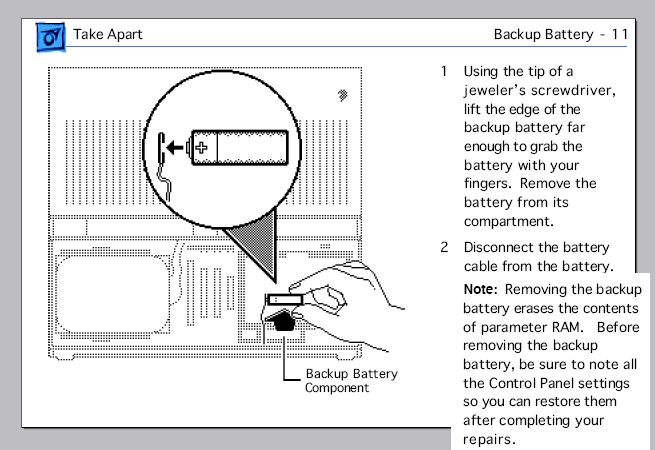

The small Battery is the so called Backup Battery (it is the RAM cache battery) ,
please look in the Developers Notes for the voltage.
here are some Tips from http://www.lowendmac.com/pb/portable.shtml
* Godwin <godwin@unixg.ubc.ca> says, "If the acid battery dies, one can bypass it and convert the Portable into a luggable. One needs 2 AC adapters -- the original one and a 9V DC adapter. Take out the 9V DC battery and replace it with a 9V 1A power adapter. Then remove the battery and cover (there is a switch at the battery cover which we need to disable). Plug the two adapters in and viola! one of the sleekest Macs on anyone's desktop!"
* One user has reported success replacing a dead Conner CP-3045 hard drive with a standard Conner CP-3044 that had been formatted under System 6.0.8.
* You can use a PowerBook 100-series AC adapter to run the Portable without the internal lead-acid battery. However, you will lose PRAM settings if you unplug the power (date, time, cache size, etc.)
Cautions
 Never use a version of Apple HD SC Setup newer than 7.3.1 (which comes with System 7.0.1) or your Portable will crash while waking from sleep mode.
Battery becomes unusable if discharged below 5.4V; keep it charged!
 Hard drive will not spin up without a charged battery installed.
* The Mac Portable does not provide SCSI termination power, depending on external SCSI devices to provide it. For more details, see SCSI Termination Power.
* Macs with black-and-white only displays (1-bit, no grays) may find Netscape Navigator 3 makes it impossible to view some pages and sites. The workaround is to use Navigator 2.
* Serial port limited to 57.6 kbps; use of a 56k modem may be limited. See 56k modem page.
* Apple has discontinued support and parts orders for this model. You may be able to find dealers with parts inventory either locally or on my parts and service list.
An Article at Jagshouse:
Replacing the Batteries In Mac Portable
 http://www.jagshouse.com/batteries.html
MicroMac 34/50-pin SCSI Adapter for Macintosh Portable
MicroMac Mass Storage: 34-pin to 50-pin SCSI bus converter for Macintosh Portable to adapt standard SCSI drives to 34-pin Apple Mac Portable requirement.
http://www.micromac.com/products/portable_scsi.html
Or do it yourself: 34/50-pin SCSI Adapter for Macintosh Portable
http://antinode.org/mac/port_scsi.html
_________________
MacOS aka Oliver
Last edited by MacOS on Thu Jul 21, 2005 1:15 pm; edited 7 times in total |
|
| Back to top |
|
|
DrZarkov
Joined: 16 Apr 2005
Posts: 12
Location: Niederrhein/Germany
|
| Posted: Tue May 10, 2005 7:45 pm Post subject: |
|
|
| Klasse! Danke f¸r die Hinweise! Ich habe vorhin den Akku mal gemessen, 5,1 Volt liefert er. Das Netzteil liefert noch die angegeben 7,5 V. 8 Stunden laden sagt Apple... |
|
| Back to top |
|
|
MacOS
Site Admin
Joined: 19 Jan 2005
Posts: 304
Location: Berlin, Germany
|
|
| Back to top |
|
|
DrZarkov
Joined: 16 Apr 2005
Posts: 12
Location: Niederrhein/Germany
|
| Posted: Wed May 11, 2005 8:38 pm Post subject: |
|
|
After 8 hrs of loading the batteries I've managed to boot MacOS 7.01 from floppy-disk, after playing with the reset-buttom. Unfortunally the hd seems to be dead, but that's not such a big problem. Just some work to make an adaptor for the strange 34 pin SCSI-connector.
BTW: Is it true, that the 2,5" hds in the early Powerbooks was SCSI, too? |
|
| Back to top |
|
|
MacOS
Site Admin
Joined: 19 Jan 2005
Posts: 304
Location: Berlin, Germany
|
| Posted: Wed May 11, 2005 11:30 pm Post subject: PowerBook 100: Technical Specifications |
|
|
Sounds good ! Good luck for the Portable BackToLife Project.
Let me know the results.
Yes, it seems that the first PowerBooks had an internal SCSI,
but the HD must be a smaller one than normal ones?
Have a look to the Macintosh PowerBook 100: Technical Specifications
http://docs.info.apple.com/article.html?artnum=112182
PowerBook 100 - Storage
Min. Int HD Size: 20-40MB
Int HD Interface: SCSI
_________________
MacOS aka Oliver
Last edited by MacOS on Thu May 12, 2005 1:01 am; edited 3 times in total |
|
| Back to top |
|
|
applefreak
Joined: 11 Oct 2006
Posts: 58
Location: belgium
|
|
| Back to top |
|
|
MacOS
Site Admin
Joined: 19 Jan 2005
Posts: 304
Location: Berlin, Germany
|
| Posted: Sat Apr 28, 2007 1:31 am Post subject: |
|
|

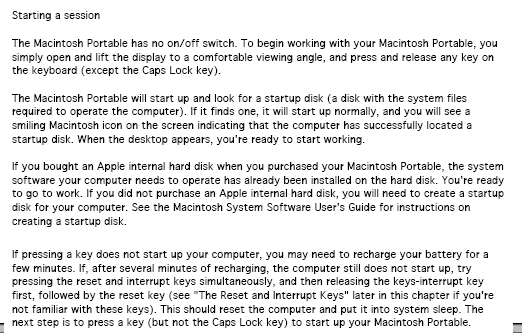

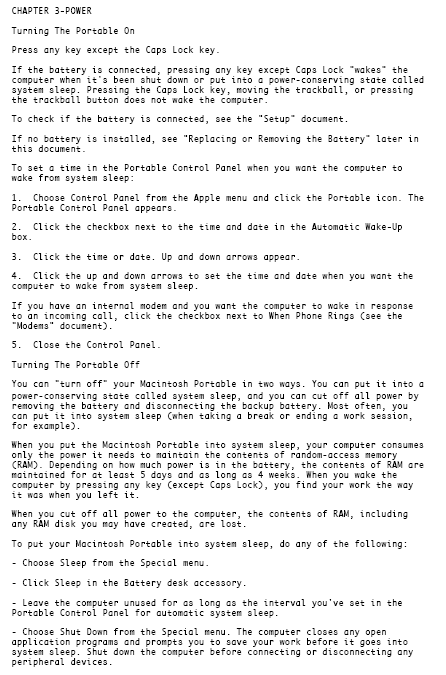

| applefreak wrote: | i saved the help to boot up a portable as pdf
(from a site i do not know anymore)
so i post the pdf here
|
thank you for the PDF ! Great help.
added to the MacFinder
_________________
MacOS aka Oliver
|
|
